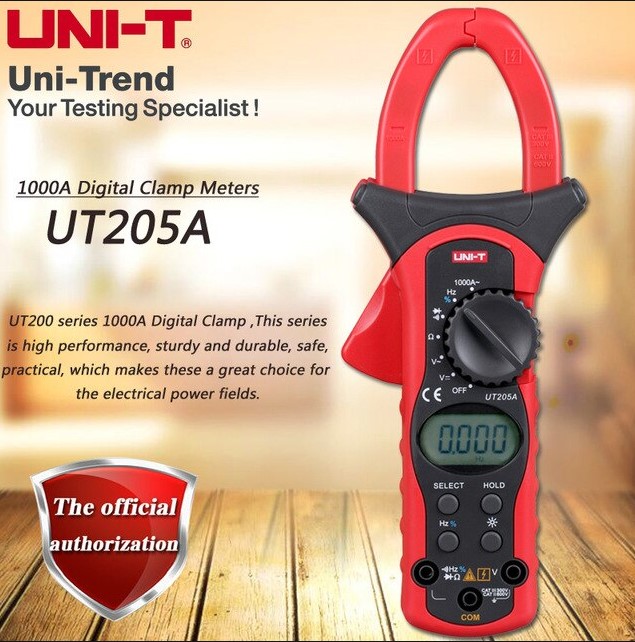

רב מודד צבת מדידה UNI-T UT205A
צבת רב מודד UNI-T UT205A | UNI-T UT205A Auto Range LCD Backlight 1000A Digital Clamp Meters w/ Frequency & Duty Cycle Test
למפרט המלא...
דגם: UT205A
אחריות: 12 חודשים
זמן אספקה: עד 1-7 ימי עסקים
יצרן: UNI-T
מחיר אתר: ₪454.00
חזרו אלי בקשר למוצר זה:
צבת רב מודד UNI-T UT205A

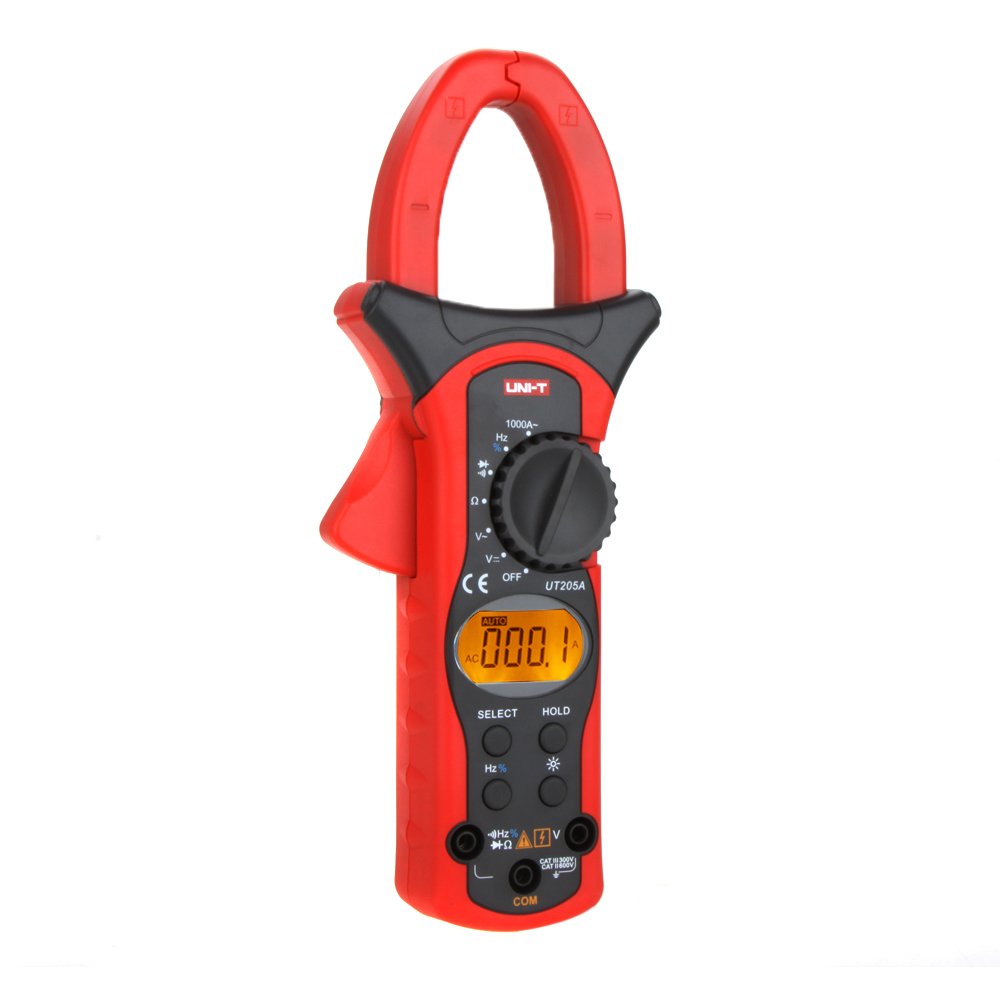

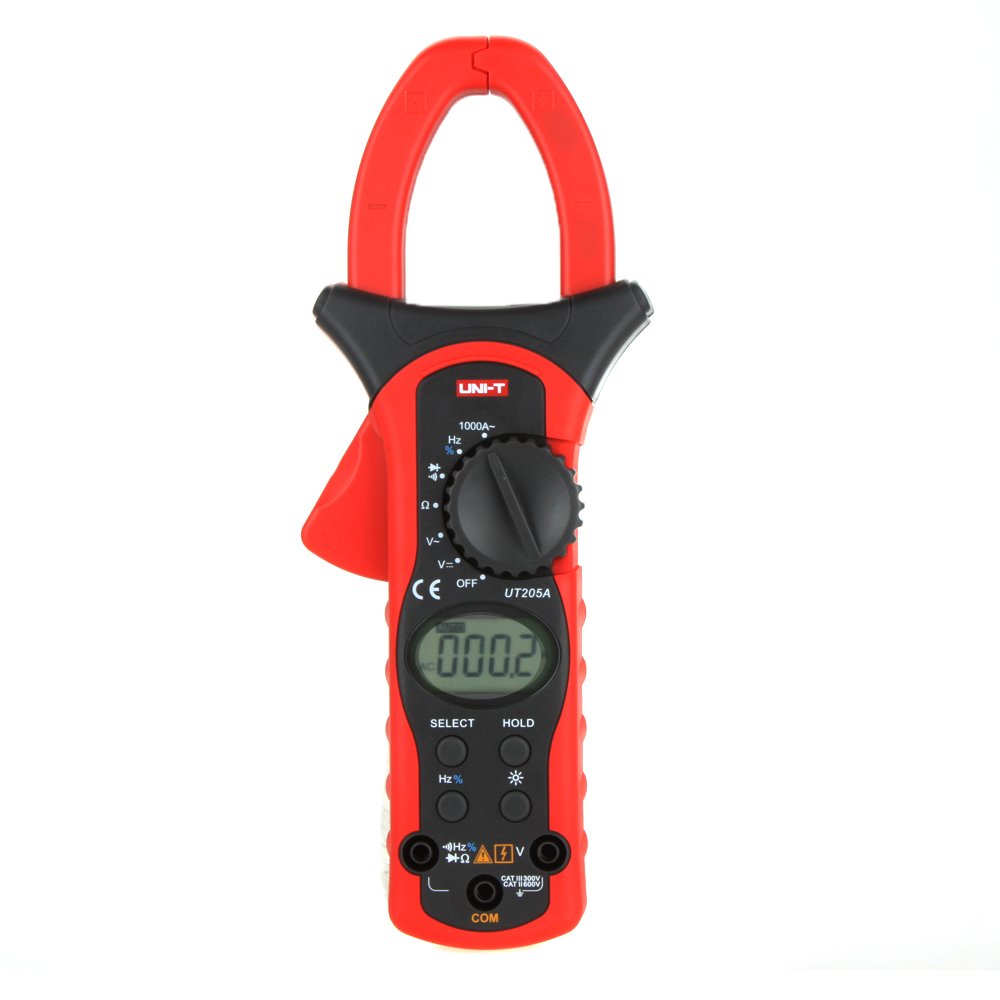

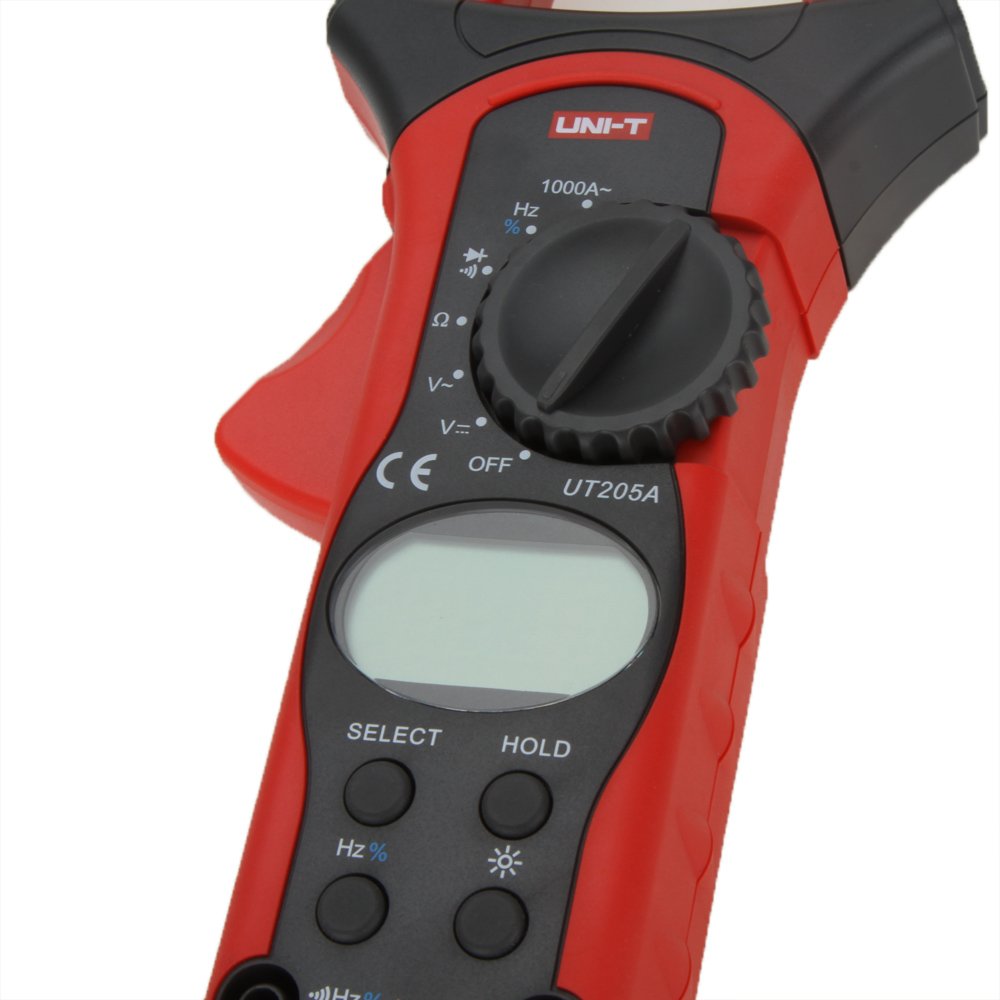

UT205A 1000A Digital Clamp Meter
UT205A/206A are professional 1000A digital clamp meters with 40mm jaw. This series is ergonomically designed, allowing better handling for users wearing electrical gloves. UT205A/206A are great choices for electricians and other professionals in need of measuring up to 1000A AC current.
Applications:
The meter is an ideal tool for maintenance in smelting, manufacturing, petroleum, electric power, chemical and other industries.
UNI-T UT205A Auto Range LCD Backlight 1000A Digital Clamp Meters w/ Frequency & Duty Cycle Test
Features:
Display Count: 4000
Auto Range: √

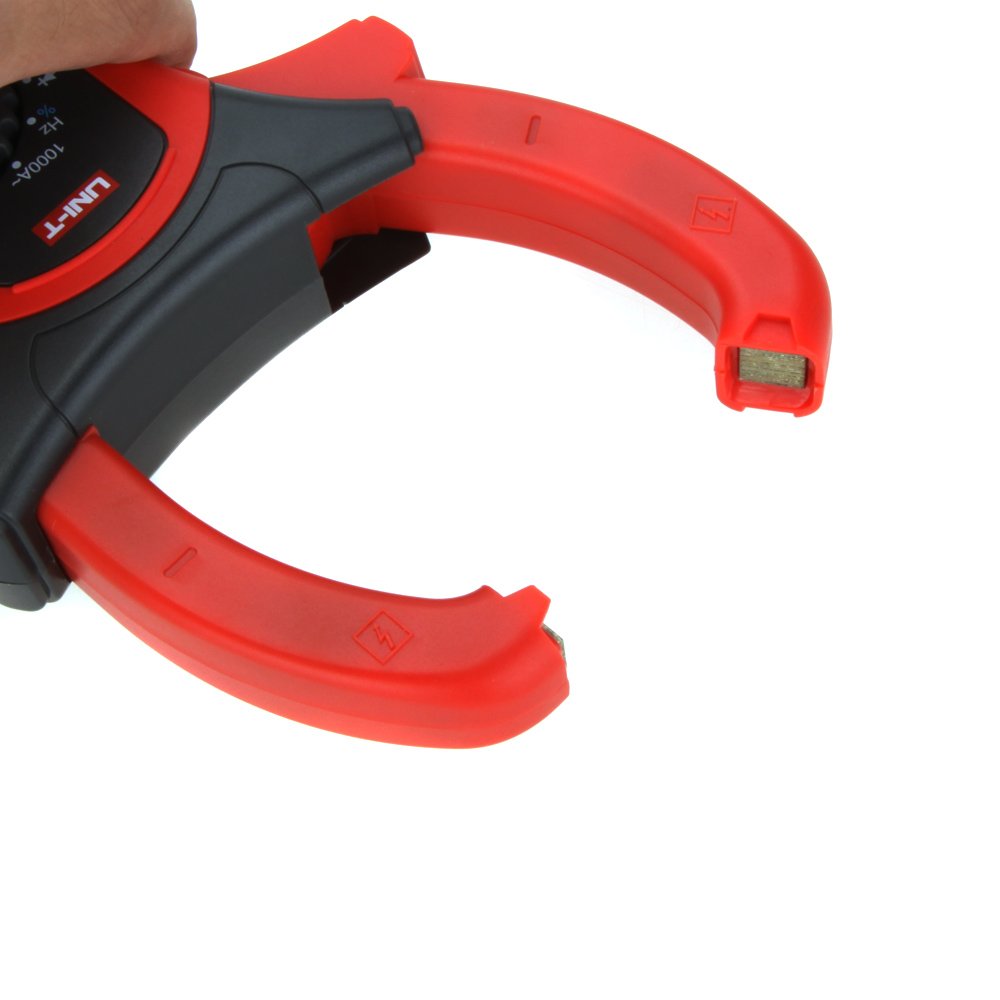

Jaw Capacity: 40mm
Duty Cycle: 0.1%~99.9%
Diode: √
Auto Power Off: √
Continuity Buzzer: √
Low Battery Indication: √
Data Hold: √
LCD Backlight: √
Full Icon Display: √
Input Impedance for DCV: Around 10M?
Specifications:
Model: UT205A
AC Current (A): 400A/1000A ±(1.5%+5)
AC Voltage (V): 4V/40V/400V/600V ±(1.2%+5)
DC Voltage (V): 400mV/4V/40V/400V/600V ±(0.8%+1)
Resistance (?):400?/4K?/40K?/400K?/4M?/40M? ±(1%+2)
Frequency (Hz): 10Hz~10MHz ±(0.1%+3)
General Characteristic:
Product Net Weight: 350g
Product Size: 236mm * 97mm * 40 mm

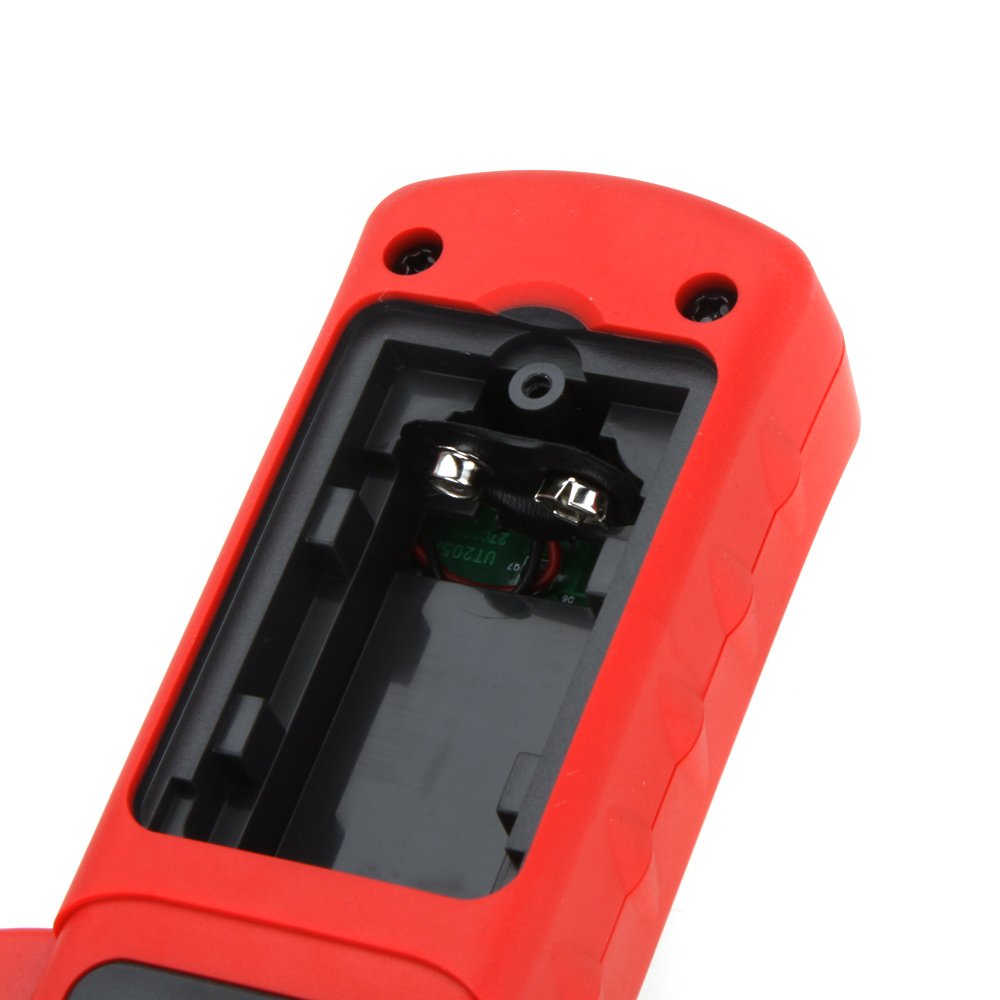

Power: 9V Battery?6F22) (not included)
LCD Size: 37mm * 18 mm
Product Color: Red and Grey
Package Size: 25 * 17.7 * 6.5cm / 10 * 7 * 2.5in
Package Weight: 649g / 1.4lb
Package List:
1 * UNI-T UT205A Digital Clamp Meter

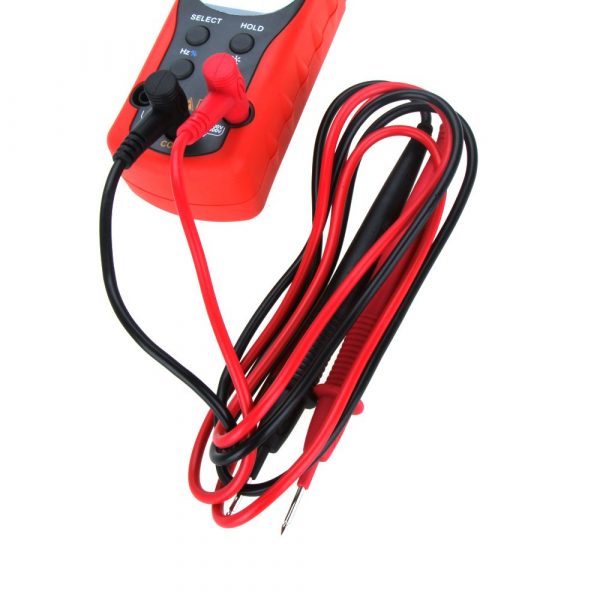

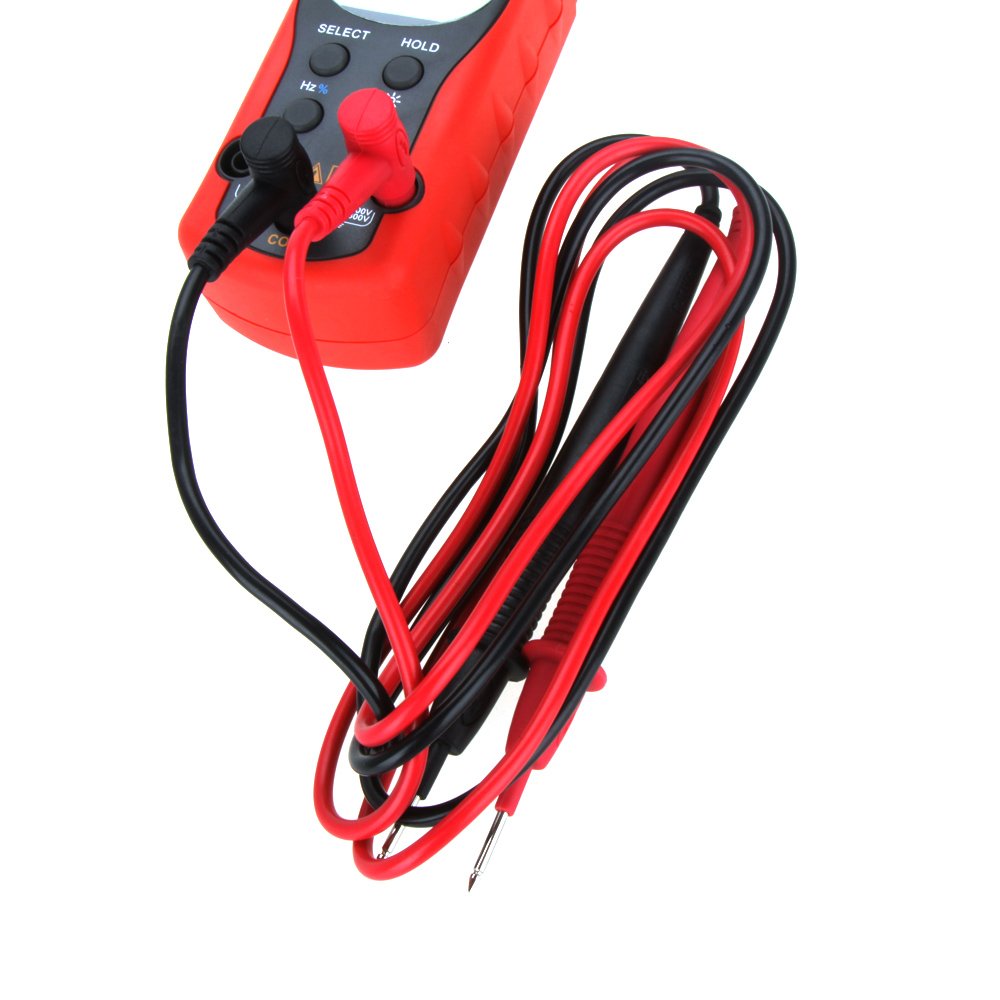

1 * Test Lead
1 * Carrying Bag
1 * English Manual

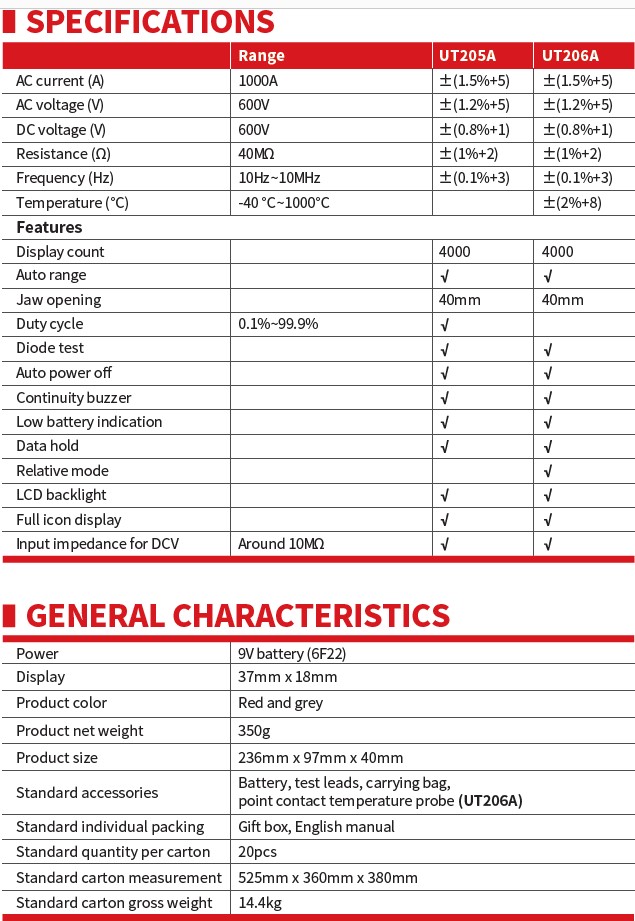

| Specifications | Range | UT205A | UT206A |
| AC current (A) | 1000A | ±(1.5%+5) | ±(1.5%+5) |
| AC voltage (V) | 600V | ±(1.2%+5) | ±(1.2%+5) |
| DC voltage (V) | 600V | ±(0.8%+1) | ±(0.8%+1) |
| Resistance (Ω) | 40MΩ | ±(1%+2) | ±(1%+2) |
| Frequency (Hz) | 10Hz~10MHz | ±(0.1%+3) | ±(0.1%+3) |
| Temperature (°C) | -40 °C~1000°C | ±(2%+8) | |
| Features | |||
| Display count | 4000 | 4000 | |
| Auto range | √ | √ | |
| Jaw opening | 40mm | 40mm | |
| Duty cycle | 0.1%~99.9% | √ | |
| Diode test | √ | √ | |
| Auto power off | √ | √ | |
| Continuity buzzer | √ | √ | |
| Low battery indication | √ | √ | |
| Data hold | √ | √ | |
| Relative mode | √ | ||
| LCD backlight | √ | √ | |
| Full icon display | √ | √ | |
| Input impedance for DCV | Around 10MΩ | √ | √ |
| General Characterisitics | |||
| Power | 9V battery (6F22) | ||
| Display | 37mm x 18mm | ||
| Product color | Red and grey | ||
| Product net weight | 350g | ||
| Product size | 236mm x 97mm x 40mm | ||
| Standard accessories | Battery, test leads, carrying bag, point contact temperature probe (UT206A) | ||
| Standard individual packing | Gift box, English manual | ||
| Standard quantity per carton | 20pcs | ||
| Standard carton measurement | 525mm x 360mm x 380mm | ||
| Standard carton gross weight | 14.4kg | ||
