This kind of HDMI to VGA+ R/LAdapter converts digital HDMI signal into analog VGA video signal and R/L audio signal. It allows users to enjoy their high definition image and sound when watching movies or playing games on the traditional VGA monitors or projectors.



It offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and Projector factory, noise space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.





1.1 FEATURES



This HDMI adapter has many features that enable it to perform in a superior manner. Among those features you will find:







• •  Easy to Use: Install in seconds, no need of setting.















• •  Conversion: It could convert complete HDMI into VGA video output.















• •  Supports 165MHz/1.65Gbps per channel (6.75Gbps all channel) bandwidth for HDMI Input.















• •  Supports Analogue Video output up to UXGA and 1080p.















2.0 SPECIFICATIONS











Signal Inputs/Output



























Input Video Signal











0.5-1.0 volts p-p















Input DDC Signal











5 volts p-p (TTL)















Input connection











HDMI A female(19pin)















Output connection











VGA, R/L















HDMI video input format











480i/576i/480p/576p/720p/1080i/1080p















VGA video output format











480i/576i/480p/576p/720p/1080i/1080p















Audio output format











2 channel LPCM















Operating Frequency



























VerticalFrequencyRange











50/60Hz















Input Video Amplifier Bandwidth











1.65Gpbs/165MHz















Mechanical



























Length











1M















Weight(Net)











97g















Warranty



























Limited Warranty











1 Year















Environmental



























Operating Temperature











0℃to +70℃















Operating Humidity











10% to 85 % RH (no condensation)















Storage Temperature











-10℃to +80℃















Storage Humidity











5% to 95 % RH (no condensation)















Power Requirement



























External Power Supply











USB Power















Power consumption (Max)











0.75W















User Manual











English Version





















Note: Specifications are subject to change without notice.











3.0 PACKAGE CONTENTS





Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:







•  Main unit.





















•  User’s Manual





























4.0 PANEL DESCRIPTIONS





Please study the panel drawings below and become familiar with the signal input(s), output(s) and power requirements.

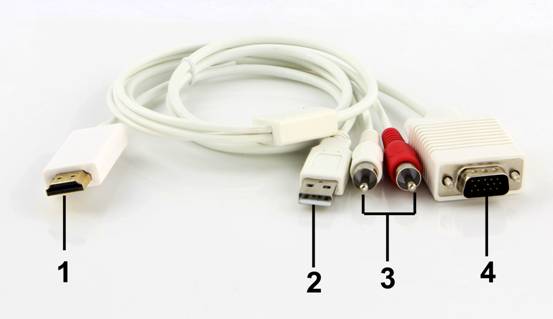

Interface function:



1，HDMI



Connect this port to HDMI sources,such as DVD, PC.



2, USB



Connect this port to device that can supply power for the product.



3, R/L



ConnecttheR/L interfaceto Display or Amplifier Receiver to enjoy audiofrom the HDMI sources.



4, VGA



Connectthis port to Display to enjoy the videofrom the HDMI sources.

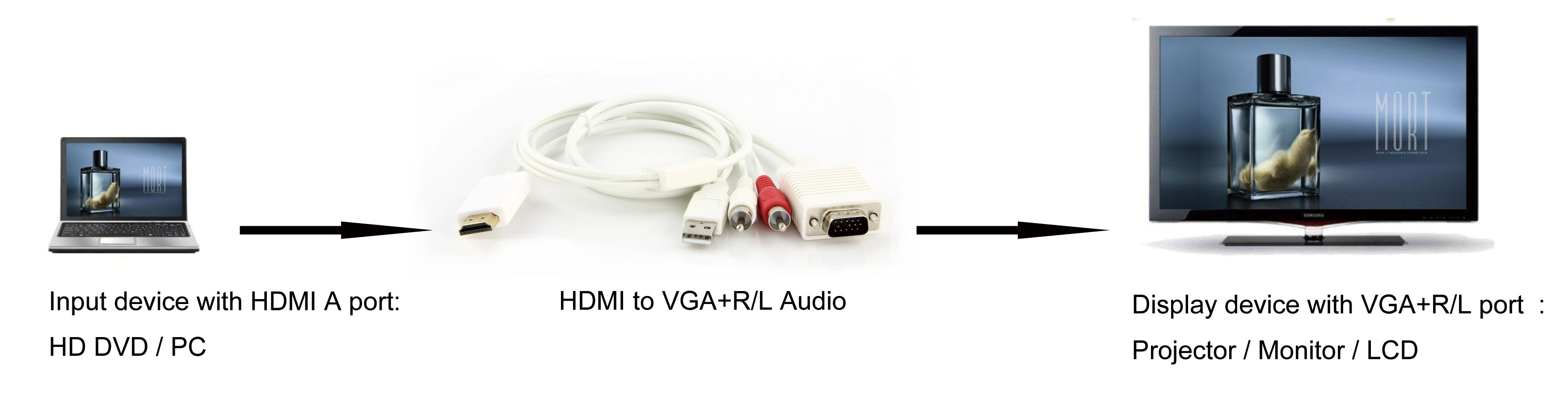

5.0 ConnectIONandOperatION



1) Connect the USB interface for power supply (It must be the first step)



2) Connect the HDMI interface with HDMI source



3) Connect the R/L interface and VGA interface with the Display.



Note：HDMI to VGA conversion may existing the following compatibility problems



1. If the VGA port of Display doesn’t support Refresh Rate at 50HZ, the connected Display will have no image when the HDMI Source setting at 50 Hz.



2. If the VGA port of Display doesn’t support resolution at 720p, 1080i and 1080p, the connected Display will have no image when the HDMI Source setting at 720p, 1080i and 1080p,



3. If the connected VGA Display doesn’t support interlaced resolution, it will have no image when the HDMI Source setting at 1080i, 480i or 567i.



Our product fully supports the above formats. These common problems are mainly coursed by Displays not supporting these formats.
