רב מודד צבת מדידה UNI-T UT210A

רב מודד צבת מדידה מיני 15.5 ס”מ UNI-T UT210A

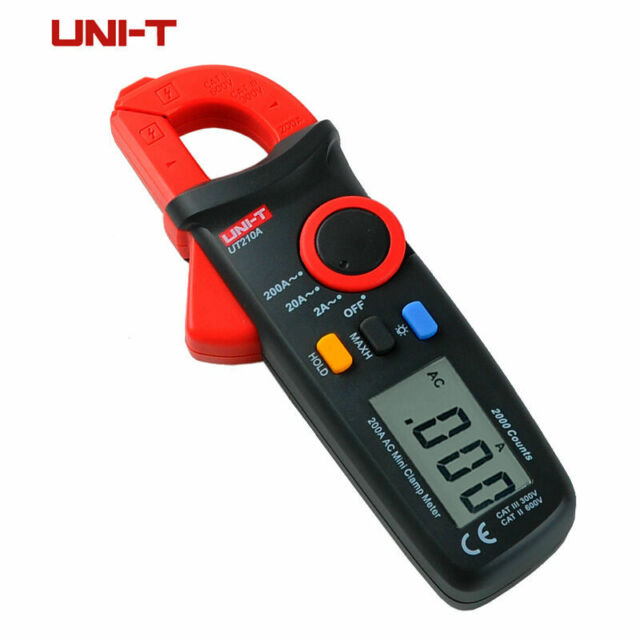

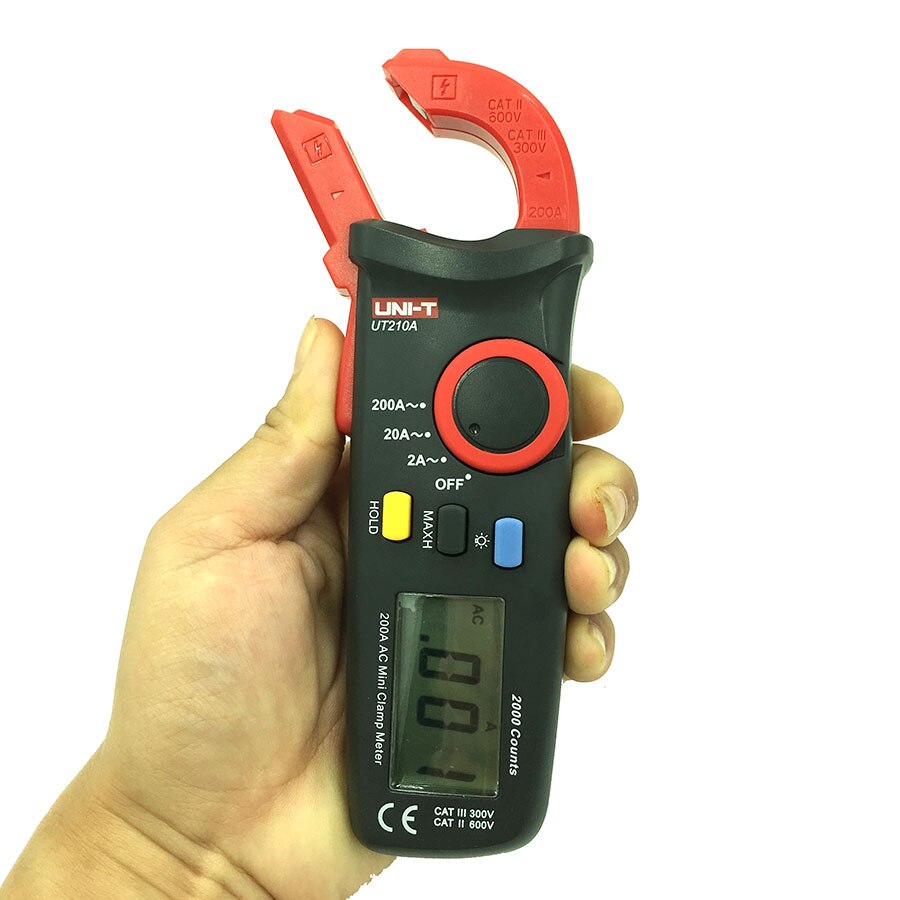

UT210A Mini Clamp Meter



UT210 series mini clamp meters are designed to work well in limited space environments. These are essential tools for mechanical and electrical equipment maintenance, home appliance installation and electrician duties.



Mini Clamp Meter UNI-T UT210A



* small AC clamp meter
* sensitive
* input protection



SPECIFICATION
AC Current
2A/20A/200A ±(1.0%+9)



FEATURES
Display Count 2000
Jaw Capacity 17mm
Data Hold
LCD backlight
Auto Power Off
Low Battery Indication
Input Protection



GENERAL CHARACTERISTICS
Power: 1.5V AAA (2x)
LCD Size: 39.3×26.5mm
Weight: 160g
Size: 155x60x33.5mm



ACCESSORY
Batteries, Manual



1. Ergonomic and lightweight
2. Auto range, 2~3 times/s sampling rate
3. LCD backlight, data hold
4. Auto power off, low battery indication

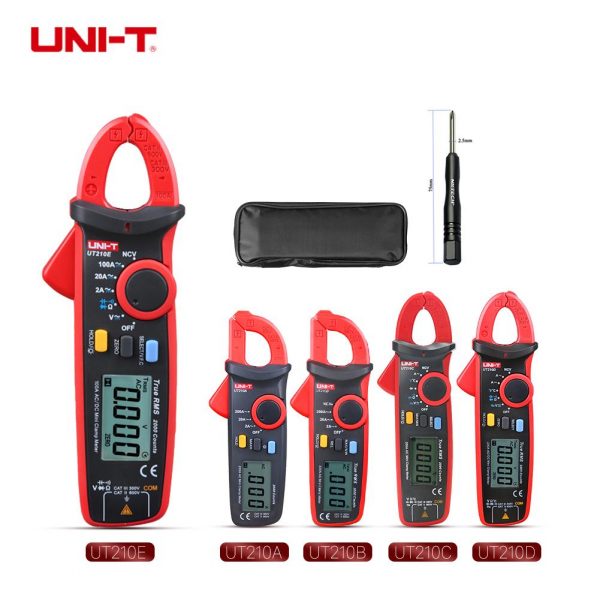

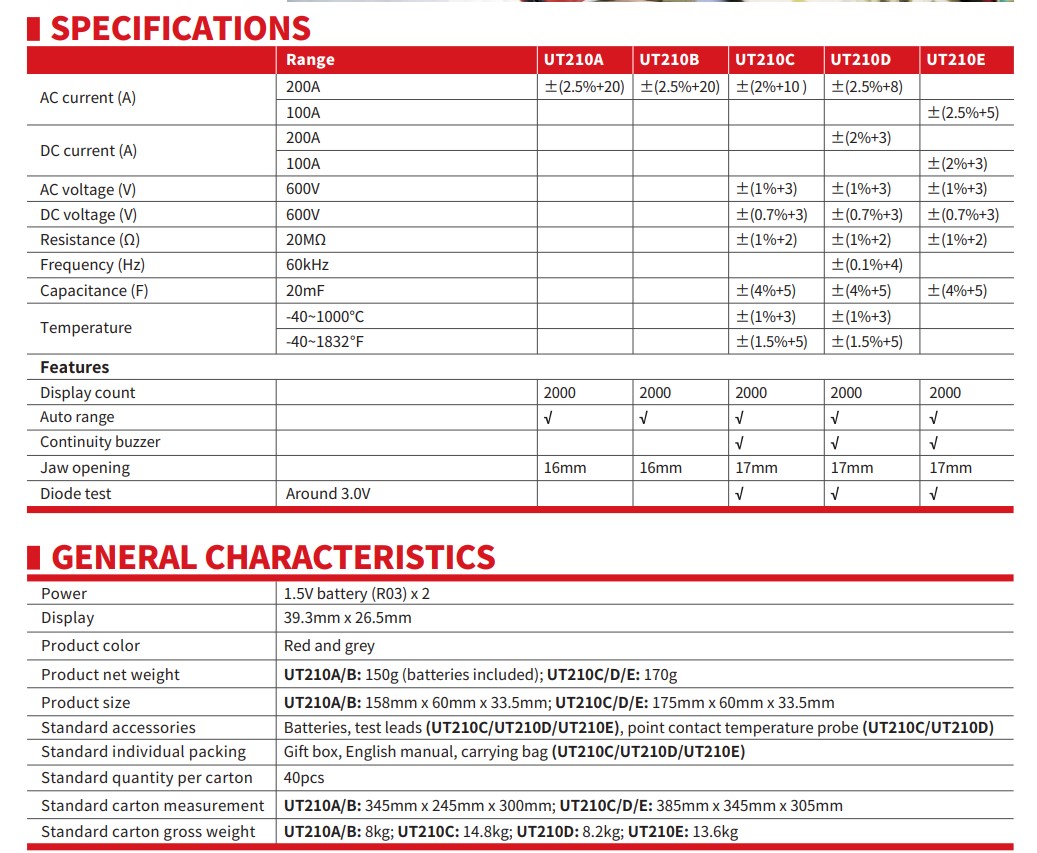

Specifications

Range

UT210A

UT210B

UT210C

UT210D

UT210E



AC current (A)

200A

±(2.5%+20)

±(2.5%+20)

±(2%+10)

±(2.5%+8)

　



100A

　

　

　

　

±(2.5%+5)



DC current (A)

200A

　

　

　

±(2%+3)

　



100A

　

　

　

　

±(2%+3)



AC voltage (V)

600V

　

　

±(1%+3)

±(1%+3)

±(1%+3)



DC voltage (V)

600V

　

　

±(0.7%+3)

±(0.7%+3)

±(0.7%+3)



Resistance (Ω)

20MΩ

　

　

±(1%+2)

±(1%+2)

±(1%+2)



Frequency (Hz)

60kHz

　

　

　

±(0.1%+4)

　



Capacitance (F)

20mF

　

　

±(4%+5)

±(4%+5)

±(4%+5)



Temperature

-40~1000℃

　

　

±(1%+3)

±(1%+3)

　



-40~1832℉

　

　

±(1.5%+5)

±(1.5%+5)

　



Features



Display count

　

2000

2000

2000

2000

2000



Continuity buzzer

　

√

√

√

√

√



Auto range

　

　

　

√

√

√



Jaw opening

　

16mm

16mm

17mm

17mm

17mm



Diode test

Around 3.0V

　

　

√

√

√



General Characteristics



Power

1.5V battery (R03) x 2



Display

39.3mm x 26.5mm



Product color

Red and grey



Product net weight

UT210A/B: 150g (batteries included); UT210C/D/E: 170g



Product size

UT210A/B: 158mm x 60mm x 33.5mm; UT210C/D/E: 175mm x 60mm x 33.5mm



Standard accessories

Batteries, test leads (UT210C/UT210D/UT210E), point contact temperature probe (UT210C/UT210D)



Standard individual packing

Gift box, English manual, carrying bag (UT210C/UT210D/UT210E)



Standard quantity per carton

40pcs



Standard carton measurement

UT210A/B: 345mm x 245mm x 300mm; UT210C/D/E: 385mm x 345mm x 305mm



Standard carton gross weight

UT210A/B: 8kg; UT210C: 14.8kg; UT210D: 8.2kg; UT210E: 13.6kg
