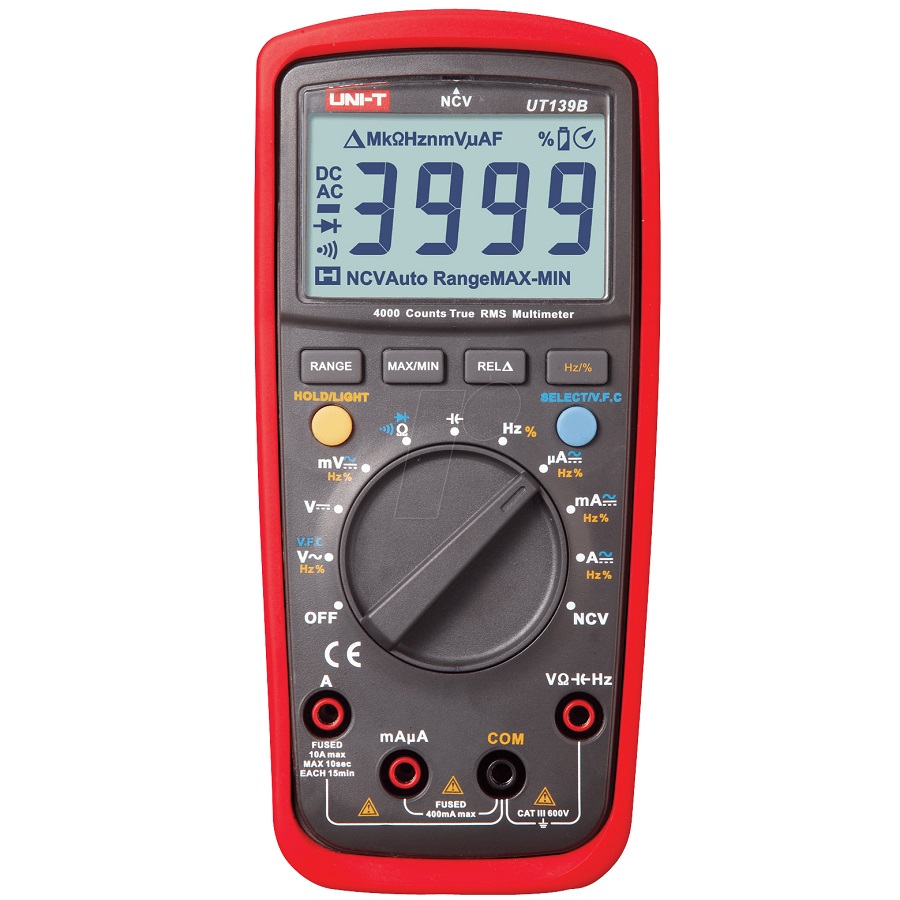

רב מודד UNI-T UT139B

רב מודד מתח AC+DC 500V/זרם AC+DC/התנגדות/קיבולות UNI-T UT139B

UT139B True RMS Digital Multimeter

Modern TRMS digital multimeter with top grade input protection.

SPECIFICATION:
DC Voltage: 40mV/400mV/4V/40V/400V/600V
– accuracy: ±(0.5%+2)
AC Voltage: 40mV/400mV/4V/40V/400V/600V
– accuracy: ±(0.8%+3)
DC Current: 400uA/4000uA/40mA/400mA/4A/10A
– accuracy: +/- (0.8%+2)
AC Current: 400uA/4000uA/40mA/400mA/4A/10A
– accuracy: +/- (1%+3)
Resistance: 400Ω/4kΩ/40kΩ400kΩ/4MΩ40MΩ
– accuracy: +/- (0.8%+2)
Capacitance: 9.999nF/99.99nF/999.9nF/99.99uF/999.9uF/9.999mF/99.99mF
– accuracy: +- (4%+5)
Frequency: 10Hz – 10MHz
– accuracy: +- (0.1%+4)

FUNCTIONS:
Autorange
True RMS
Bandwidth 45Hz-1kHz
Diode test
NCV
Auto Power Off
Continuity buzzer
Low Battery Indication
Data hold
Relative mod
Display Backlight
Input Protection 600Vrms

GENERAL CHARACTERISTICS:
Power: 2xAA 1,5V
Product Size: 180mm x 87mm x 47mm
Product Weight: 370g
LCD Size: 58mm x 36mm
Accessory: battery, test leads

UT139 series are CAT III 600V digital multimeters designed for electricians. Its NCV feature can effectively check electrical status through measuring EM field intensity. The new UT139E/S models include special features such as LoZ (ACV) for measuring‘ghost’ voltage. Its built-in 31-segment analog bar also gives electricians a better visual representation of measurement results. UT139S is built with black EBTN display and it is a perfect meter for working in dark environments.

Applications:
It can work in dark environment.

1. MAX/MIN/REL modes
2. Data hold, LED backlight, auto power off
3. Full range protection (600V)
4. True RMS
5. NCV
6. Auto/manual ranges selectable
