רב מודד צבת מדידה כולל מד טמפרטורה UNI-T UT204A
רב מודד צבת מדידה UNI-T UT204A | כולל מד טמפורטורה | AC Current 40A/600A ±(2.5%+5) | DC Current 40A/600A ±(2.5%+5) | AC Voltage | 4V/40V/400V/600V ±(1%+5) | DC Voltage 400mV/4V/40V/400V/600V ±(0.8%+1) | Resistance | 400Ohm/4KOhm/40KOhm/400KOhm/4MOhm/40MOhm ±(1%+2) | Capacitance4nF/40nF/400nF/4µF/40µF/100µF±(4%+3) Frequency | 10Hz ~ 10MHz | ±(0.5%+3) | 10MHz Reference only | Temperature -40 °C ~ 1000°C ±(2.5%+3)
למפרט המלא...
דגם: UT204A
אחריות: 12 חודשים
זמן אספקה: עד 1-7 ימי עסקים
יצרן: UNI-T
מחיר אתר: ₪439.00
חזרו אלי בקשר למוצר זה:
רב מודד צבת מדידה UNI-T UT204A

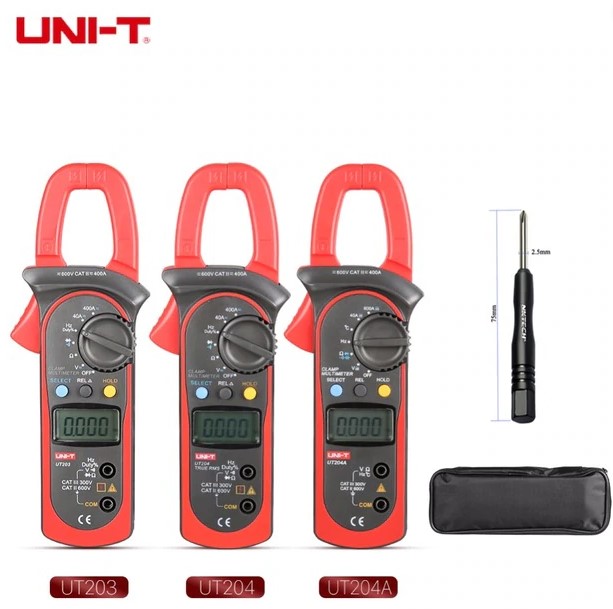

Clamp Multimeter UNI-T UT204A
UT204A 400-600A Digital Clamp Meter
This series is UNI-T’s entry level digital clamp meter. It is a great choice for measuring residential and commercial power wires. UT202 and UT204A come with point contact temperature probe, perfect for working in HVAC.
1. Relative mode for capacitance zeroing and offset adjustment
2. Auto range
3. Data hold/auto power off
4. Point contact temperature probe
5. 3 times/s sampling rate
6. Capacitance measurement up to 100uF
7. Low battery/over-range indication and auto polarity display
Small clamp multimeter UNI-T UT204A
Safety Rating
CAT II 600V
CAT III 300V
Certifications
CE
EN:61010-1
EN:61326-1
EN:61010-2-032
Specifications
AC Current 40A/600A ±(2.5%+5)
DC Current 40A/600A ±(2.5%+5)
AC Voltage 4V/40V/400V/600V ±(1%+5)
DC Voltage 400mV/4V/40V/400V/600V ±(0.8%+1)
Resistance 400Ohm/4KOhm/40KOhm/400KOhm/4MOhm/40MOhm ±(1%+2)
Capacitance4nF/40nF/400nF/4µF/40µF/100µF±(4%+3)
Frequency
10Hz ~ 10MHz ±(0.5%+3)
10MHz Reference only
Temperature -40 °C ~ 1000°C ±(2.5%+3)
Features
Display Count 3999
Auto Range
Jaw Capacity 28mm
Diode
Auto Power Off
Continuity Buzzer
Low Battery Indication
Data Hold
MAX Mode
Setup
Input Impedance for DCV Around 10MOhm
General Characteristic
Power 9V Battery(6F22)
LCD Size 35.6X 18mm
Product Color Red and Grey
Product Net Weight 260g
Product Size 208mm X 76mm X30 mm
Standard Accessories Battery, Test Lead,Carrying Bag,Point Contact Temperature Probe, Gift Box, English Manual

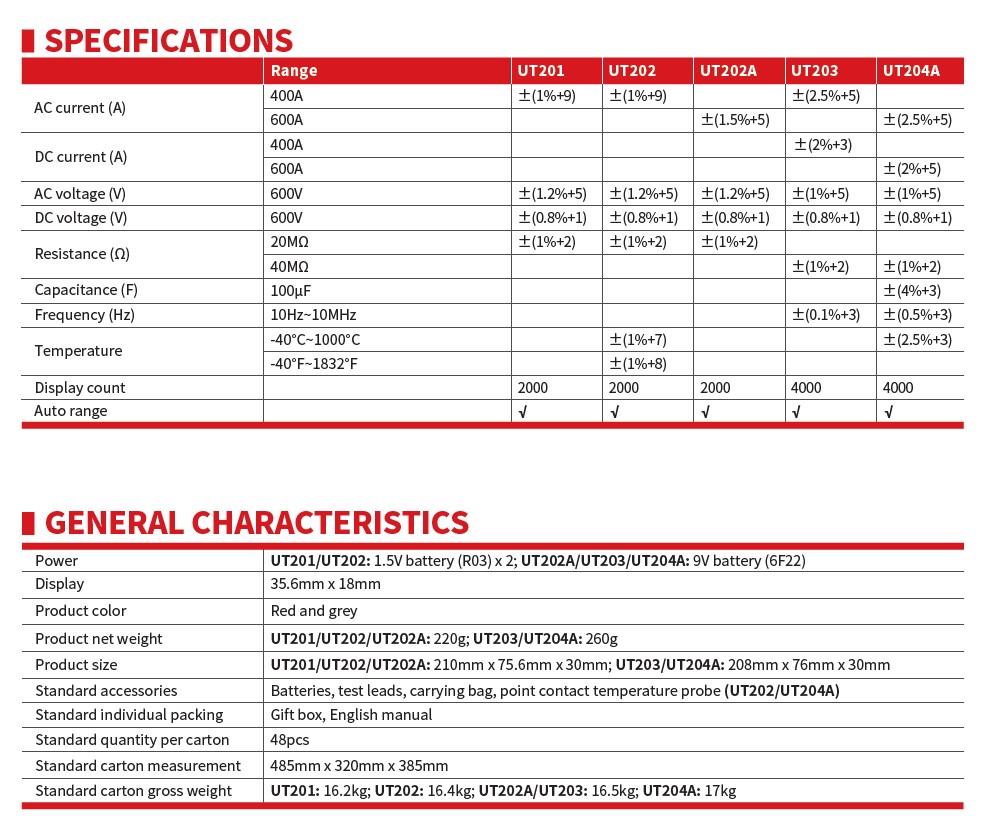

| Specifications | Range | UT201 | UT202 | UT202A | UT203 | UT204A |
| AC current (A) | 400A | ±(1%+9) | ±(1%+9) | ±(2.5%+5) | ||
| 600A | ±(1.5%+5) | ±(2.5%+5) | ||||
| DC current (A) | 400A | ±(2%+3) | ||||
| 600A | ±(2%+5) | |||||
| AC voltage (V) | 600V | ±(1.2%+5) | ±(1.2%+5) | ±(1.2%+5) | ±(1%+5) | ±(1%+5) |
| DC voltage (V) | 600V | ±(0.8%+1) | ±(0.8%+1) | ±(0.8%+1) | ±(0.8%+1) | ±(0.8%+1) |
| Resistance (Ω) | 20MΩ | ±(1%+2) | ±(1%+2) | ±(1%+2) | ||
| 40MΩ | ±(1%+2) | ±(1%+2) | ||||
| Capacitance (F) | 100μF | ±(4%+3) | ||||
| Frequency (Hz) | 10Hz~10MHz | ±(0.1%+3) | ±(0.5%+3) | |||
| Temperature | -40°C~1000°C | ±(1%+7) | ±(2.5%+3) | |||
| -40°F~1832°F | ±(1%+8) | |||||
| Display count | 2000 | 2000 | 2000 | 4000 | 4000 | |
| Auto range | √ | √ | √ | √ | √ | |
| General Characterisitics | ||||||
| Power | UT201/UT202: 1.5V battery (R03) x 2; UT202A/UT203/UT204A: 9V battery (6F22) | |||||
| Display | 35.6mm x 18mm | |||||
| Product color | Red and grey | |||||
| Product net weight | UT201/UT202/UT202A: 220g; UT203/UT204A: 260g | |||||
| Product size | UT201/UT202/UT202A: 210mm x 75.6mm x 30mm; UT203/UT204A: 208mm x 76mm x 30mm | |||||
| Standard accessories | Batteries, test leads, carrying bag, point contact temperature probe (UT202/UT204A) | |||||
| Standard individual packing | Gift box, English manual | |||||
| Standard quantity per carton | 48pcs | |||||
| Standard carton measurement | 485mm x 320mm x 385mm | |||||
| Standard carton gross weight | UT201: 16.2kg; UT202: 16.4kg; UT202A/UT203: 16.5kg; UT204A: 17kg | |||||
