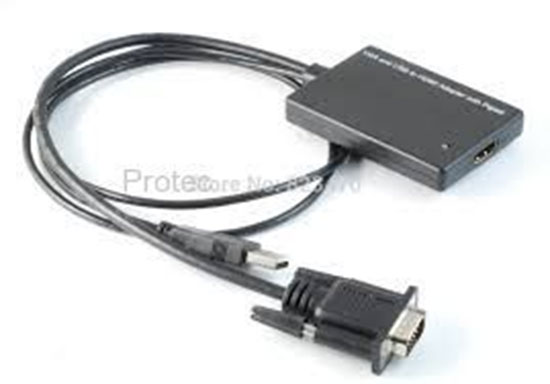

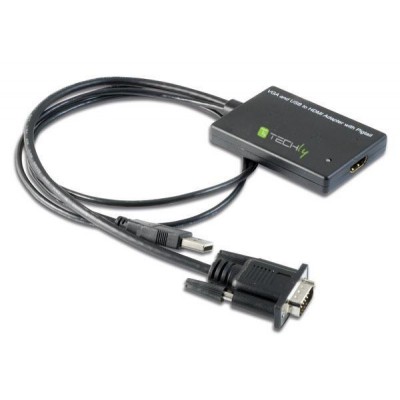

מתאם מ VGA ל Protec VGA and USB to HDMI Adapter HDMI

מתאם מ VGA ל VGA and USB to HDMI Adapter HDMI





מתאם מ VGA ל Protec VGA and USB to HDMI Adapter HDMI | מתאם מ VGA ל HDMI כולל חיבור לחשמל מ USB לחיבור ממחשב (או מקור אחר)בעל יציאת VGA -שאין לו יציאת HDM למסך HDTV ועוד מעביר אודיו תומך 1080Pטכנולוגית PIGTAIL איכותי ביותר





מתאם מ VGA ל HDMI
כולל חיבור לחשמל מ USB
לחיבור ממחשב (או מקור אחר)בעל יציאת VGA -שאין לו יציאת HDMI
למסך HDTV ועוד
מעביר אודיו
תומך 1080P
טכנולוגית PIGTAIL
איכותי ביותר







This product is a VGA video converter. It converts VGA signal into complete HDMI and allows PC users to enjoy their larger image on the display. The Converter is also alongwith USB audio that allows you to enjoy high quality sound on the HDTV. Besides, USB port can also supply power to this converter to save an extra power adapter.





This HDMI converter has many features that enable it to perform in a superior manner. Among those features you will find:









•  Easy to Use: Install in seconds, no need of setting.















•  Conversion: It can convert PC’s VGA video and USB 2CH audio into complete HDMI.















•  Supports common VGA video resolution.















•  Supports 165MHz/1.65Gbps per channel (6.75Gbps all channel) bandwidth.















•  Supports 8bit per channel (24bit all channel) deep color.















•  Power from USBPort.























Signal Inputs/Output



























Input Video Signal











0.5-1.0 volts p-p















Input DDC Signal











5 volts p-p (TTL)















Output Video











HDMI















Common VGA Resolution











640x480  60Hz 75Hz



800x600  60Hz 75Hz



1024x768 60Hz 75Hz



1280x720 60Hz 75Hz



1280x768 60Hz 75Hz



1280x960 60Hz 75Hz



1280x1024 60Hz 75Hz















Operating Frequency



























VerticalFrequencyRange











50/60Hz















Video Amplifier Bandwidth











1.65Gpbs/165MHz















Mechanical



























Size(W-H-D)











80mmW x 12mmH x 55mmD















VGA line length











0.3m















USB line length











1m















Weight(Net)











0.113kgs















Warranty



























Limited Warranty











1 Year Parts and Labor















Environmental



























Operating Temperature











0℃to +70℃















Operating Humidity











10% to 85 % RH (no condensation)















Storage Temperature











-10℃to +80℃















Storage Humidity











5% to 95 % RH (no condensation)















Power Requirement



























External Power Supply











NO















Power consumption (Max)











2.2W















Regulatory Approvals



























Converter Unit











FCC,CE,















User Manual







































Note: Specifications are subject to change without notice.





3.0 Package Contents





Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:







•  Main unit.





















•  User’s Manual























4.0 PANEL DESCRIPTIONS





Please study the panel drawn below and become familiar with the signal input(s), output(s) and power requirements.















①HDMI output





Connect this port to HDMI display





②USB A male port





Connect this port to the USB port of computer to gain the audio and Power.





③VGA male input





Connect this port to the VGA output of computer











5.0 ConnectIONandOperatION





Before installation, please make sure all the devices you wish to connect have been turned off.





1)  Connect the HDMI output of this product to the HDTV which has HDMI input (HDMI Cables are optional).





2)  Connect the VGA and USB port of this product tocomputer.





3)  Power on the computer and TV.



4) Set the right resolution of PC to HDTV.



Note: Because the some resolution formats of VGA are not the same with HDTV’s, so not all resolutions of VGA can output to HDTV. Please set these resolutions as listed in the Specification as possible.
